• Exhaust Plastic
1 1

Wahid Fans

Exhaust Plastic | Wahid Fans

Exhaust Plastic | Wahid Fans

Rs.4,850.00 PKR
Rs.4,850.00 PKR
Sale Sold out
Shipping calculated at checkout.
Size

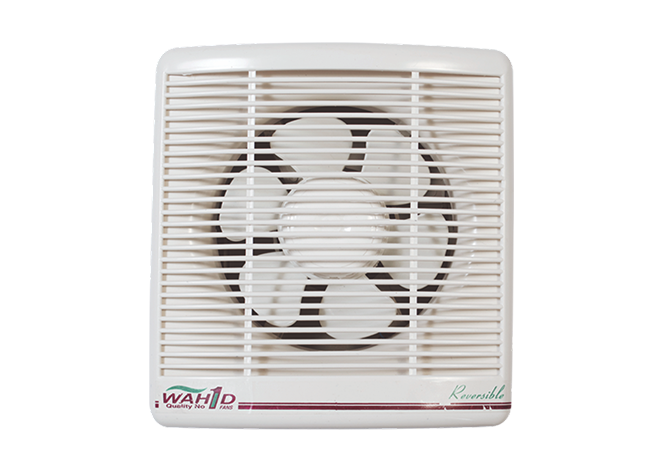

Exhaust Plastic is a high-performance ventilation fan designed for efficient air circulation in homes and commercial spaces. Built with energy-efficient electric steel sheet construction and 99.99% pure copper wire, it delivers powerful two-way air throw with double-action capability. The fan features self-opening louvres that protect against birds and rainwater, making it ideal for outdoor or semi-outdoor installation. Its compact, aerodynamic design with lightweight, rust-proof plastic body and blades ensures durability and optimal ventilation. The pull-cord interlocked on-off operation provides convenient control, while the capacitor-type motor operates at 1400 RPM on 220/230V, 50-cycle power. Available in 10" and 12" sizes with varying air displacement and power ratings to suit different ventilation needs. Perfect for kitchens, bathrooms, workshops, and industrial applications requiring reliable moisture and odour removal.

Salient Features
  • Energy efficient electric steel sheet
  • 99.99% pure copper wire
  • Powerful two-way air throw (Double Action)
  • Fan on-off operation are inter-locked through pull cord
  • Self opening louvres for protection against birds and rain water
  • Small compact design for optimum ventilation
  • Aerodynamically designed plastic blades
  • Lightweight, rust proof plastic body and blades
View full details

Technical Specifications

Editable per product in Product → Metafields → Specs

Size

8", 10", 12"

RPM

1400

Watts

30W (8") / 35W (10") / 50W (12")

Air Displacement (cu.ft./min)

800 (8") / 1000 (10") / 1500 (12")

Voltage

220/230V, 50Hz

Motor / Capacitor Type

Capacitor start

Service Value

27 (8") / 29 (10") / 30 (12")

Frequently Asked Questions

Will this exhaust fan work with a dimmer switch?

No. Do not use exhaust fans with a dimmer switch — this can damage the motor and will void the warranty. Connect directly to a standard switched outlet.

Who should install this fan?

Installation should always be done by a qualified electrician. Turn off the electrical supply at the circuit breaker before installation, and ensure the fan is connected to a properly grounded outlet.

Which direction should the fan be mounted for best airflow?

Exhaust fans are designed to pull air out of the room. Mount with the blades facing outward (toward the wall opening) so stale air is expelled and fresh air is drawn in through doors or other vents.

How do I clean and maintain my exhaust fan?

Turn off the power supply first. Wipe the blades and housing with a dry or slightly damp cloth — avoid excess water near the motor. Clean every 2–3 months for consistent airflow, more often in kitchens.

What's the difference between metal and plastic body models?

Metal body exhaust fans are heavy-duty and suited to industrial or commercial use. Plastic body models are lightweight, rust-proof, and ideal for home kitchens and bathrooms.

Does this fan come with a warranty?

Yes, every Wahid Fan carries an original factory warranty. Warranty duration varies by model — see the product specifications above or contact us for details.
